J. Neils Shay Rebuild sn-1643 Chapter 5

Update April 5 2014
Progress has again started on 1643, Libby is thawing out from a long winter. Dave has again furnished a progress report.

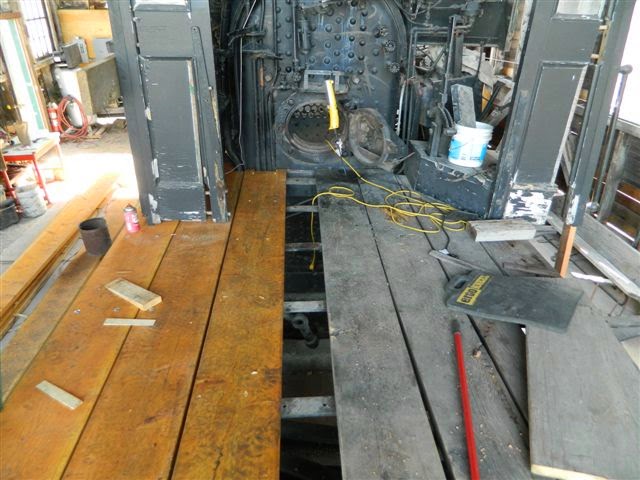

Here is the decking for the Shay. Ron is cutting out the brace and piping for inside the cab.

Next is pictures of inside the firebox. The inside of the firebox was sandblasted, now a little cleaning.  There is a weld to be ground and redone in there. CJ and Jay have been working it.

Brand new rebuilt Lubricator . Everyone taking a look at it. And the work continues on our Shay.

Here is Jay Matthews and CJ Carlson working on the support brackets for the new deck planking.  Ron checks the string line, all the brackets straight now.

Started repairs of the steam jam brake or engine brake, also will be taking off to rebuild engine oil heater.

Both of these water flanges will need the old piping taken out and threads cleaned up .  These supply feed water to the boiler, one on the Engineer's side and one on the Fireman's side.

After cleaning up the sand blast residue in the firebox numerous cracks were found.  After consultation with Stathi Pappas and others.  It was decided we need to replace the rear tube sheet too.  This will mean cutting out the old piece ,  having it made first. It will have to be installed before we can have the front tube sheet made and installed. Once we have the tube sheets installed, then we can buy and install the fire tubes. Looks like it will be awhile longer before we will be ready for a hydro test on the boiler. We have the money for one tube sheet, not sure about the other sheet. They cost about $5 to $6,000.00 each. Will put a big drain on the RR funds. Will continue on fundraising to get the money for the second sheet.  A big setback but will have a new boiler when done. Lots of  parts to clean and rebuild while we get the sheets made.  Will get some pictures of inside the firebox showing the area to be cut out soon.

Here is some of the pictures that Jay Matthews took when taking out the rear tubesheet.

ooking out to smokebox from inside firebox.

The bottom corner
of firebox.

  A close-up of the staybolt mounts.
